Please help me / point me in the right direction to add support for VBus protocol reading. (Resol controllers for standard solar thermal systems) Configuration output here:
8:36:23.668 MQT: stat/tasmota_75E634/RESULT = {"NAME":"Generic","GPIO":[1,1,1,1,1,1,1,1,1,1,1,1,1,1],"FLAG":0,"BASE":18}
18:36:23.895 MQT: stat/tasmota_75E634/RESULT = {"Module":{"18":"Generic"}}
18:36:24.148 MQT: stat/tasmota_75E634/RESULT = {"GPIO0":{"0":"None"},"GPIO1":{"0":"None"},"GPIO2":{"0":"None"},"GPIO3":{"0":"None"},"GPIO4":{"0":"None"},"GPIO5":{"0":"None"},"GPIO9":{"0":"None"},"GPIO10":{"0":"None"},"GPIO12":{"0":"None"},"GPIO13":{"0":"None"},"GPIO14":{"0":"None"},"GPIO15":{"0":"None"},"GPIO16":{"0":"None"},"GPIO17":{"0":"None"}} STATUS 0 output here:
18:37:03.138 MQT: stat/tasmota_75E634/STATUS = {"Status":{"Module":18,"DeviceName":"Tasmota","FriendlyName":["Tasmota"],"Topic":"tasmota_75E634","ButtonTopic":"0","Power":0,"PowerOnState":3,"LedState":1,"LedMask":"FFFF","SaveData":1,"SaveState":1,"SwitchTopic":"0","SwitchMode":[0,0,0,0,0,0,0,0],"ButtonRetain":0,"SwitchRetain":0,"SensorRetain":0,"PowerRetain":0}}
18:37:03.146 MQT: stat/tasmota_75E634/STATUS1 = {"StatusPRM":{"Baudrate":9600,"SerialConfig":"8N1","GroupTopic":"tasmotas","OtaUrl":"http://ota.tasmota.com/tasmota/release/tasmota.bin.gz","RestartReason":"External System","Uptime":"0T00:57:51","StartupUTC":"2021-02-15T16:39:12","Sleep":50,"CfgHolder":4617,"BootCount":2,"BCResetTime":"2021-02-13T21:41:59","SaveCount":10,"SaveAddress":"FA000"}}
18:37:03.155 MQT: stat/tasmota_75E634/STATUS2 = {"StatusFWR":{"Version":"9.2.0.7(tasmota)","BuildDateTime":"2021-02-13T21:21:28","Boot":31,"Core":"2_7_4_9","SDK":"2.2.2-dev(38a443e)","CpuFrequency":80,"Hardware":"ESP8266EX","CR":"405/699"}}
18:37:03.163 MQT: stat/tasmota_75E634/STATUS3 = {"StatusLOG":{"SerialLog":0,"WebLog":2,"MqttLog":0,"SysLog":0,"LogHost":"","LogPort":514,"SSId":["ZACUT",""],"TelePeriod":300,"Resolution":"558180C0","SetOption":["00408009","2805C8000100060000005A0A000000000000","00000080","00006000","00000000"]}}
18:37:03.176 MQT: stat/tasmota_75E634/STATUS4 = {"StatusMEM":{"ProgramSize":592,"Free":408,"Heap":24,"ProgramFlashSize":4096,"FlashSize":4096,"FlashChipId":"164020","FlashFrequency":40,"FlashMode":3,"Features":["00000809","8FDAC787","04368001","000000CF","010013C0","C000F981","00004004","00001000","00000000"],"Drivers":"1,2,3,4,5,6,7,8,9,10,12,16,18,19,20,21,22,24,26,27,29,30,35,37,45","Sensors":"1,2,3,4,5,6"}}
18:37:03.186 MQT: stat/tasmota_75E634/STATUS5 = {"StatusNET":{"Hostname":"tasmota_75E634-1588","IPAddress":"192.168.1.206","Gateway":"192.168.1.254","Subnetmask":"255.255.255.0","DNSServer":"192.168.1.254","Mac":"50:02:91:75:E6:34","Webserver":2,"WifiConfig":4,"WifiPower":17.0}}
18:37:03.193 MQT: stat/tasmota_75E634/STATUS6 = {"StatusMQT":{"MqttHost":"192.168.1.250","MqttPort":1883,"MqttClientMask":"DVES_%06X","MqttClient":"DVES_75E634","MqttUser":"user","MqttCount":1,"MAX_PACKET_SIZE":1200,"KEEPALIVE":30}}
18:37:03.202 MQT: stat/tasmota_75E634/STATUS7 = {"StatusTIM":{"UTC":"2021-02-15T17:37:03","Local":"2021-02-15T18:37:03","StartDST":"2021-03-28T02:00:00","EndDST":"2021-10-31T03:00:00","Timezone":"+01:00","Sunrise":"06:47","Sunset":"17:05"}}
18:37:03.211 MQT: stat/tasmota_75E634/STATUS10 = {"StatusSNS":{"Time":"2021-02-15T18:37:03"}}
18:37:03.218 MQT: stat/tasmota_75E634/STATUS11 = {"StatusSTS":{"Time":"2021-02-15T18:37:03","Uptime":"0T00:57:51","UptimeSec":3471,"Heap":24,"SleepMode":"Dynamic","Sleep":50,"LoadAvg":19,"MqttCount":1,"Wifi":{"AP":1,"SSId":"ZACUT","BSSId":"F0:9F:C2:A4:3B:1C","Channel":3,"RSSI":46,"Signal":-77,"LinkCount":1,"Downtime":"0T00:00:04"}}}
Sample data output here:
18:36:36.651 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:36.770 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:37.635 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:37.792 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:38.816 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:39.843 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:40.703 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:40.916 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:41.941 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:42.751 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:42.931 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:43.987 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:44.800 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:45.016 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:46.043 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:47.018 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:47.875 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:48.042 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:49.059 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:50.153 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:50.945 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:51.111 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:52.133 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:53.206 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:54.025 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:54.232 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:55.258 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:56.284 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:57.093 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"�!B�
18:36:57.256 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:58.331 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:36:59.359 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:37:00.378 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}
18:37:01.404 MQT: tele/tasmota_75E634/RESULT = {"SerialReceived":"!B �w"}Connecting the Resol BS Plus controller data output to a Wemos D1 Mini RX port is done using a level-shifter circut (see diagram below). Baudrate is 9600, protocol is 8N1. The connection works correctly as data is being received, it only needs to be decoded appropriately. I've found several projects on this: Is it possible to import the code of any of the above into Tasmota so we can integrate Resol units into the ecosystem? |
Beta Was this translation helpful? Give feedback.
Replies: 27 comments 114 replies
-
Beta Was this translation helpful? Give feedback.
-
|
Watchdog reset is generally because your code enter a loop that takes too long and don't return to Tasmota quick enough Start little by little. Comment calls to your functions in Xsns76() and try if OK. |
Beta Was this translation helpful? Give feedback.
-
|
How quick should return to Tasmota? |
Beta Was this translation helpful? Give feedback.
-
|
20 seconds is way, way too long. As explained by barbudor, you should not have any blocking loop/wait, as many things need to be able to happen in Tasmota all the time, not restricted to wifi, rules and having several drivers running. |
Beta Was this translation helpful? Give feedback.
-
|
As much as possible, do not spend more than a few ms in a function |
Beta Was this translation helpful? Give feedback.
-
|
Maybe this could be done with Smart Meter driver instead? |
Beta Was this translation helpful? Give feedback.
-
|
Also can you give me a hint on how to decode time? Offset 12 or 13? It's like this in vbusdecode. |
Beta Was this translation helpful? Give feedback.
-
|
ok now bytes and time i guess we are ready we should delete this thread when we are ready (too much junk) >D 1,AA100021421000010774vo0uw@10,val1,C,val1,1 1,AA100021421000010774vo8ub@1,pumpspeed1,S,val1,1 1,AA100021421000010774vo10ub@b0:1,status,r1,val1,1 1,AA100021421000010774vo20uw@1,p1,x,val1,1 1,AA100021421000010774vo12ut@#,time,,val1,1 |
Beta Was this translation helpful? Give feedback.
-
|
What's the need for IP address? |
Beta Was this translation helpful? Give feedback.
-
|
this is only if you use the external script editor. (which i always do) |
Beta Was this translation helpful? Give feedback.
-
|
OK thanks. I'm using linux on my PC and there's no Linux version for the editor. But there's an error now, MQTT only contains first 4 values: Also time is an empty string. |
Beta Was this translation helpful? Give feedback.
-
|
with your script and both raw samples i have everything works like expected. |
Beta Was this translation helpful? Give feedback.
-
|
OK Now it's fine here too, don't know what was it. |
Beta Was this translation helpful? Give feedback.
-
|
none of these set however in my samples 1,AA100021421000010774vo15ub@b0:1,CollMax,,co1,0 |
Beta Was this translation helpful? Give feedback.
-
|
no difference with SML i have no cue what's wrong, meanwhile i will check why the text line must be at the end, this is strange too |
Beta Was this translation helpful? Give feedback.
-
|
I will try to recompile on a vanilla system. |
Beta Was this translation helpful? Give feedback.
-
And the MQTT is invalid too, as it 's missing the last curly bracket. |
Beta Was this translation helpful? Give feedback.
-
|
Could this be because |
Beta Was this translation helpful? Give feedback.
-
|
OK so my observation is at follows. Starting with first 4 lines only, S1->S4:

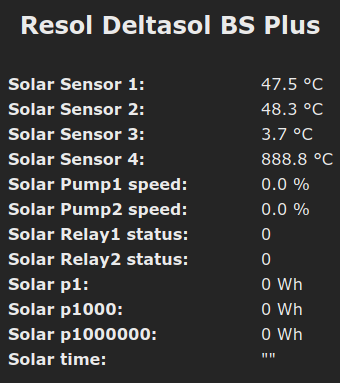

So after removing time line, save is not enough, restart needed! If I add R1 R2 and power lines, status seems OK! (although p1000000 shows 65535 Wh which is probably incorrect, should be 0 in my case). But MQTT is valid! If I keep he power lines and add the bitmasked values decoder lines, invalid MQTT! Now remove bitmasked values decoder lines only leave S1->S4, R1, R2, powers, MQTT is OK. Now after I add these: MQTT invalid. |
Beta Was this translation helpful? Give feedback.
-
|
Meanwhile for the docs, some questions: |
Beta Was this translation helpful? Give feedback.
-
|
AA is the sync byte the other 9 bytes are the resol header |
Beta Was this translation helpful? Give feedback.
-
|
info: if the checksum fails 0xffffffff is returned per septet that means 65535 for a word. can it be that your serial connection is faulty ? |
Beta Was this translation helpful? Give feedback.
-
If that was true, the samples I've sent you have to be faulty too, as I took them through the very same connection (same cable, wemos module, same Tasmota, only disabled script and changed to TCPSerial bridge). Testing your new file, hold on |
Beta Was this translation helpful? Give feedback.
-
|
Time still breaks it :( Results in: |
Beta Was this translation helpful? Give feedback.
-
|
ok the syntax if very error intolerant, the '2' after ub leeds to these lines not setting the valid flag, so missing 2 lines in total 1,AA100021421000010774vo8ub2@b0:1,R1 PUMP,,relay1,0 i will think on how to improve this |
Beta Was this translation helpful? Give feedback.
-
|
checking for syntax errors would enlarge the code very much. probably we should state in docs that on strange behavior the user should check for syntax errors. |
Beta Was this translation helpful? Give feedback.
-
|
OK but that means a very detailed documentation for this. |
Beta Was this translation helpful? Give feedback.
-
|
There's an issue decoding bits for the pumps. If, just for fun, I replace b with w, I do get strange values (0 and 2048), but at least there's no invalid MQTT: |
Beta Was this translation helpful? Give feedback.
-
|
Got it. But still, there's an issue decoding that as byte. Because when decoding it as word, no error (just wrong value). When decoding as byte - invalid MQTT. |
Beta Was this translation helpful? Give feedback.
-
|
15:55:54.381 MQT: tele/sonoff/SENSOR = {"Time":"2021-02-23T15:55:54","Solar":{"sens1":45.7,"sens2":24.7,"sens3":49.8,"sens4":29.1,"relay1":0,"relay2":0,"p1":964,"p2":609,"p3":2,"pump1":100,"pump2":0,"val1":"14:36"}} |
Beta Was this translation helpful? Give feedback.
-
|
Ok there's an issue in the sample. Pump1 can't be 100% because both relays R1 and R2 are off. So it's illogical, a pump can't run at 100% speed if it's not turned on. |
Beta Was this translation helpful? Give feedback.
-
|
as i said the offset 8 is NOT correct for PUMP speed and valve pump speed and PUMP/VALVE cannot be both at offset 8, either is wrong 1,AA100021421000010774vo8ub@1,Pump1 speed,%%,pump1,0 1,AA100021421000010774vo8ub@b0:1,R1 PUMP,,relay1,0 |
Beta Was this translation helpful? Give feedback.
-
|
As for the relays, in my case this doesn't work: This does: Is this the same for you? |
Beta Was this translation helpful? Give feedback.
-
|

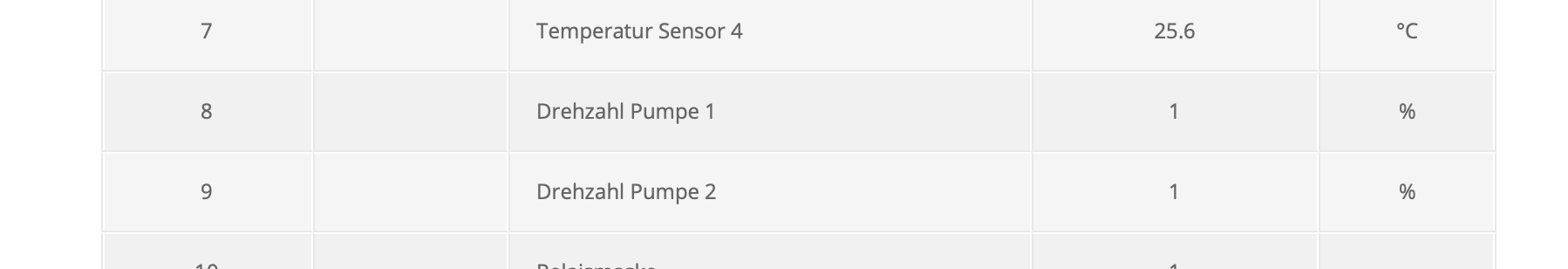

this vo8ub2 is a syntax error and causes the descriptor to skip one line which also leads to missing MQTT Drehzahl Pumpe is pump speed the Relay mask is at offset 10 so probably this may work 1,AA100021421000010774vo10ub@b0:1,R1 PUMP,,relay1,0 |
Beta Was this translation helpful? Give feedback.
-
|
It doesn't. It produces invalid MQTT. What works for me atm is this: |
Beta Was this translation helpful? Give feedback.
-
|
Meanwhile preparing to update documentation. Please check if everything is correct. If missing something, post here and I'll update the table, and then submit a PR.
|
Beta Was this translation helpful? Give feedback.
-
so just this info is correct
|
Beta Was this translation helpful? Give feedback.
-
|
Ok |
Beta Was this translation helpful? Give feedback.
-
|
just to prove that offset 10 is correct look at the example from above, the last 2 items fetch the relay bits 0 and 1 from offset 10 cat raw.log | ./a.out -f rrdvals -c 1 0,15,0.1 2,15,0.1 4,15,0.1 6,15,0.1 8,7,1 9,7,1 20,16,1,p 22,16,1000,p 24,16,1000000 12,16,0,t 10,1,0 10,1,1 |
Beta Was this translation helpful? Give feedback.
-
|
Indeed sorry I got confused. This script now works with the tasmota build made from your repo. |
Beta Was this translation helpful? Give feedback.
-
|
OK so with the new script you've sent above:
Maybe there's other files affected, which need replacement? |
Beta Was this translation helpful? Give feedback.
-
|
no other files affected. to prove, try to put sml.ino from my repo into tasmota dev |
Beta Was this translation helpful? Give feedback.
-
|
I'll look into this a bit later. Now I'm happy with the build made from your repo and try to gather some data to push in Home Assistant, as sun rises and heats the collector. |
Beta Was this translation helpful? Give feedback.
-
|
I see your repo is updated to 9.3.1.1 and it's working built from there. |
Beta Was this translation helpful? Give feedback.
-
|
Meanwhile, for the docs: Do you have an idea on how could somebody reconstruct the |
Beta Was this translation helpful? Give feedback.
-
|
there is already a line with 'xx', just expand with xN should look like this:
|
Beta Was this translation helpful? Give feedback.
-
Done, please check. |
Beta Was this translation helpful? Give feedback.
-
|
then find the line with your device e.g. 2142 and take the first 10 characters including aa |
Beta Was this translation helpful? Give feedback.
-
|
table ok now! |
Beta Was this translation helpful? Give feedback.
-
|
I don't get the aa's. Really. :( |
Beta Was this translation helpful? Give feedback.
-
|
No "aa" for me: |
Beta Was this translation helpful? Give feedback.
-
|
Tried with your fork, no aa's. Are you sure it's pushed back to github? |
Beta Was this translation helpful? Give feedback.
-
|
sorry did only work with small amount of data, had a buffer overflow. is now fixed in my fork |
Beta Was this translation helpful? Give feedback.
-
|

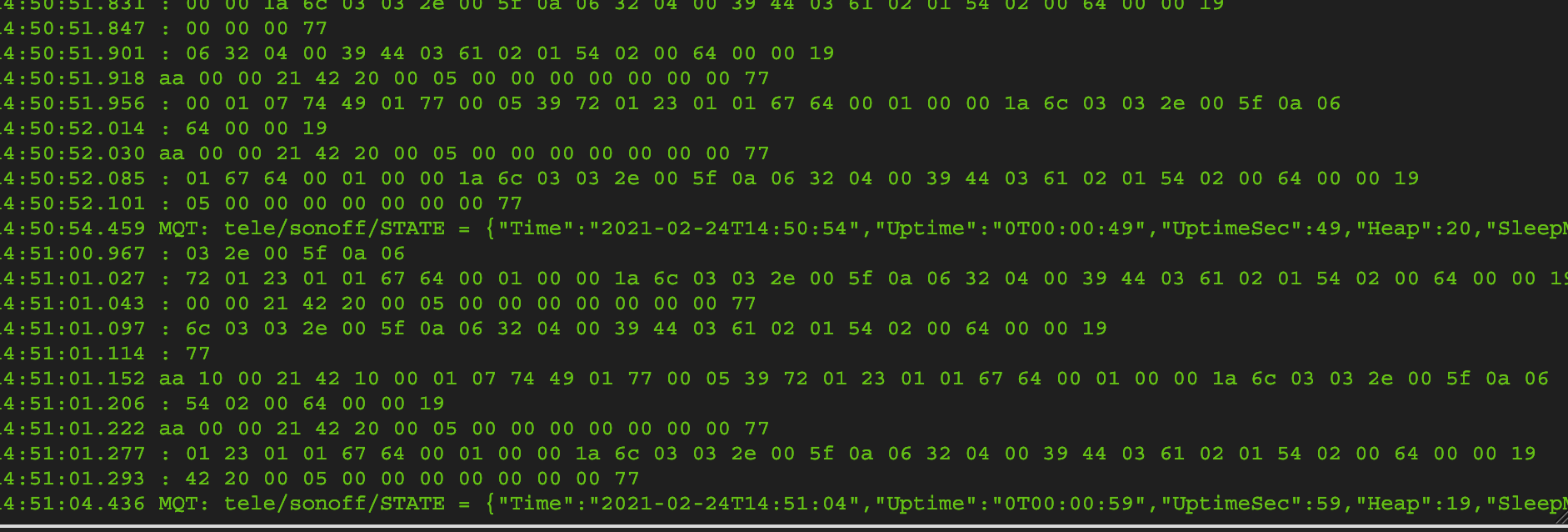

Now much better see: I see both types of lines contain |
Beta Was this translation helpful? Give feedback.
-
|
The 7 th value must be 00 and the 8 Th value 01 = command 0100 |
Beta Was this translation helpful? Give feedback.
-
|
Ok I'll fix the table |
Beta Was this translation helpful? Give feedback.
-
|
Please check table now if description is correct or not. Tried to explain for dummies :) |
Beta Was this translation helpful? Give feedback.
-
|
I have tested vbus serial data and looks like tasmota always read same header, with arduino sketch I read correct values from Resol device, this is my log when dump: And this is my script: Tasmota device dont show any value in WebUI. |
Beta Was this translation helpful? Give feedback.
-
|

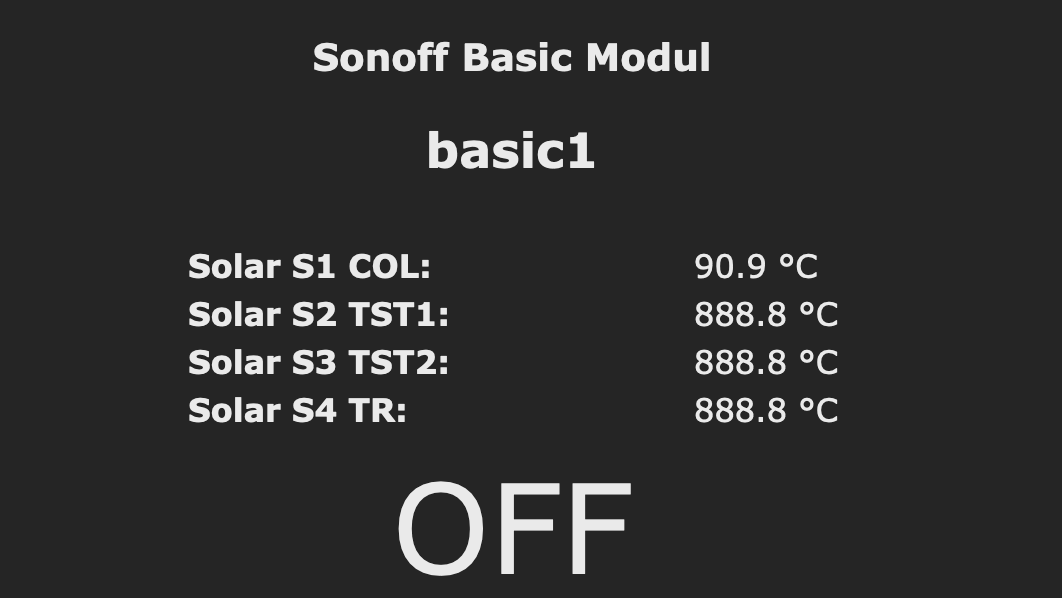

this is what i get with your script and your dump only the 1. sensor shows a value the other 3 are not present and show 888.8 |
Beta Was this translation helpful? Give feedback.
-
|
888.8 means data is correctly decoded, Resol outputs this for a sensor input with sensor unconnected or faulty. If you do have a sensor connected make sure you're really reading at the correct offset. |
Beta Was this translation helpful? Give feedback.
-
|
@gemu2015 and @nagyrobi many thanks. I forgot to #define SML_REPLACE_VARS before compile firmware. Now I can read the values in WebUI and they are correct. I have just 1 sensor connected for testing (a potentiometer): |
Beta Was this translation helpful? Give feedback.
-
|
OK added a clarification in the VBus example for that. |
Beta Was this translation helpful? Give feedback.
-
|
It not possible to compile firmware with USE_RULES enabled to publish MQTT directy in domoticz using a rule like this? It will not work? |
Beta Was this translation helpful? Give feedback.
-
|
no smart meter driver is not compatible with rules it must use script. but it is easy to publish from script also, see scripting docs |
Beta Was this translation helpful? Give feedback.
-
|
ok, i will check. Thank you |
Beta Was this translation helpful? Give feedback.
-
|
Here it is: Console: Probably can be made with a list variabe and 'for next' loop. |
Beta Was this translation helpful? Give feedback.
-
|
here is the most optimized form: >D >S >M 1 must compile with USE_SML_SCRIPT_CMD |
Beta Was this translation helpful? Give feedback.
-
|
Wow. |
Beta Was this translation helpful? Give feedback.
-
|
@gemu2015 very nice, I would create array to define Domoticz device numbers. They probably won't be, in reality, consecutive idx. Somehow:
|
Beta Was this translation helpful? Give feedback.
-
|
yes this can be even shorter: is called array auto increment mode |
Beta Was this translation helpful? Give feedback.
-
|
@gemu2015 good morning, I have a new deltasol controller, I have dumped it using command sensor53 d1 and I get 2 usefull addresses including AA. With r="1,AA100011221000010a21" I get temperatures, relays R1-R2 states, time, etc... I could use these 2 addresses at the same time to extract the information from the script? This is the dump: 08:03:46.347 RSL: tele/tasmota_4CCA08/SENSOR = {"Time":"2021-10-22T08:03:46","ANALOG":{"A0":4},"DS18B20":{"Id":"03139779F412","Temperature":22.9},"Solar":{"p1":422,"sens1":12.6,"sens2":48.1,"sens3":58.2,"sens4":21.5,"pump1":0,"relay1":4451,"pump2":0,"relay2":36,"relay2":0},"TempUnit":"C"} Kind regards |
Beta Was this translation helpful? Give feedback.
-
|
yes, you can. r1="1,AA100011221000010a21" |
Beta Was this translation helpful? Give feedback.
-
|
@javier6d2 good evening, Thank you very much! Edit: |
Beta Was this translation helpful? Give feedback.
-
|
@19Andy89 hello, here it is: Kind regards |
Beta Was this translation helpful? Give feedback.
-
|
lots of useful information in this thread, however, I still have a question. I have a Resol DeltaSol BS, I am connected, and receiving data, however, I am thinking some of the %r% variable replacements in my implementation are incorrect for the BS version of the meter. I am trying to ensure, I have the correct replacements available for my specific implementation. I have been using a stock script that I found on https://tasmota.github.io/docs/Smart-Meter-Interface/
From what I understand, from my example above %r%vo2sw@10,S2 TST1,°C,sens2,1 %r%vo2sw@10 - is the device result that is being replaced. If that is correct, WHERE, do I find all of those result values that would correspond to my specific meter - DeltaSol BS. Thanx in advance! d |
Beta Was this translation helpful? Give feedback.
-
|
From what I remember, a few years ago, Daniel Wippermann (resol) published offsets for most controllers, but now I can't find that information, you'll have to do trial and error. In my case these are my offsets |
Beta Was this translation helpful? Give feedback.
-
|

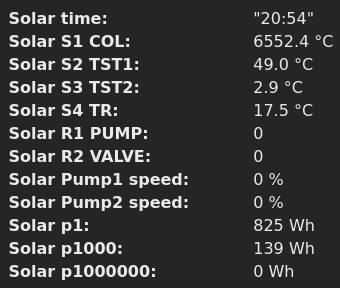

@gemu2015 It looks like negative temperatures are not decoded correctly: |
Beta Was this translation helpful? Give feedback.
-
|
%r%vo0uw@10,S1 COL,°C,S1,1 is defined as uw = unsigned word try signed word %r%vo0sw@10,S1 COL,°C,S1,1 |
Beta Was this translation helpful? Give feedback.
-
|
should be fixed with pending pr |
Beta Was this translation helpful? Give feedback.
-
|
Can you give me a link to a branch with it? I'll build my own. |
Beta Was this translation helpful? Give feedback.
-
|
its now merged into Tasmota latest dev branch. |
Beta Was this translation helpful? Give feedback.
-
|
Works, thank you. |
Beta Was this translation helpful? Give feedback.
-
|
Created a PR to the doc with fixed example. |
Beta Was this translation helpful? Give feedback.
-
|
Yes, that is the document I am looking for…
THANK YOU!!!
this helps!!
d
… On Jul 13, 2022, at 8:19 AM, javalin ***@***.***> wrote:
WHERE, do I find all of those result values that would correspond to my specific meter - DeltaSol BS
From what I remember, a few years ago, Daniel Wippermann (resol) published offsets for most controllers, but now I can't find that information, you'll have to do trial and error. In my case these are my offsets
// Frame info for the Resol DeltaSol CS Plus
// check VBusprotocol specification for other products
// This library is made for the Resol DeltaSol CS Plus (0x2211)
//Offset Mask Name Factor Unit
//0 Temperature S1 1.0 °C
//1 Temperature S1 256.0 °C
//2 Temperature S2 1.0 °C
//3 Temperature S2 256.0 °C
//4 Temperature S3 1.0 °C
//5 Temperature S3 256.0 °C
//6 Temperature S4 1.0 °C
//7 Temperature S4 256.0 °C
//8 Pump Speed R1 1 %
//10 Operating Hours R1 1 h
//11 Operating Hours R1 256 h
//12 Pump Speed R2 1 %
//14 Operating Hours R2 1 h
//15 Operating Hours R2 256 h
//16 UnitType 1
//17 System 1
//20 1 Sensor 1 defekt 1
//20 2 Sensor 2 defekt 1
//20 4 Sensor 3 defekt 1
//20 8 Sensor 4 defekt 1
//20 Error Mask 1
//20 Error Mask 256
//22 Time 1
//23 Time 256
//24 Statusmask 1
//25 Statusmask 256
//26 Statusmask 65536
//27 Statusmask 16777216
//28 Heat Quantity 1 Wh
//29 Heat Quantity 256 Wh
//30 Heat Quantity 65536 Wh
//31 Heat Quantity 16777216 Wh
//32 SW-Version 0.01
//33 SW-Version 2.56
//
// Each frame has 6 bytes, FLength
// byte 1 to 4 are data bytes -> MSB of each bytes
// byte 5 is a septet and contains MSB of bytes 1 to 4, FSeptet
// byte 6 is a checksum
// FOffset 10, Offset start of Frames
—
Reply to this email directly, view it on GitHub, or unsubscribe.
You are receiving this because you commented.
|
Beta Was this translation helpful? Give feedback.
-
|
DId anybody already do it for a Deltasol BX Plus? |
Beta Was this translation helpful? Give feedback.
-
|
solved it another way with my vbus2influx solution... |
Beta Was this translation helpful? Give feedback.
-
|
Hello together, after having some struggles with a "Deltasol BX", some remarks from my side esp. wrt to the description in https://tasmota.github.io/docs/Smart-Meter-Interface/#meter-metrics
So this is how I'd recommend to proceeded with vbus:

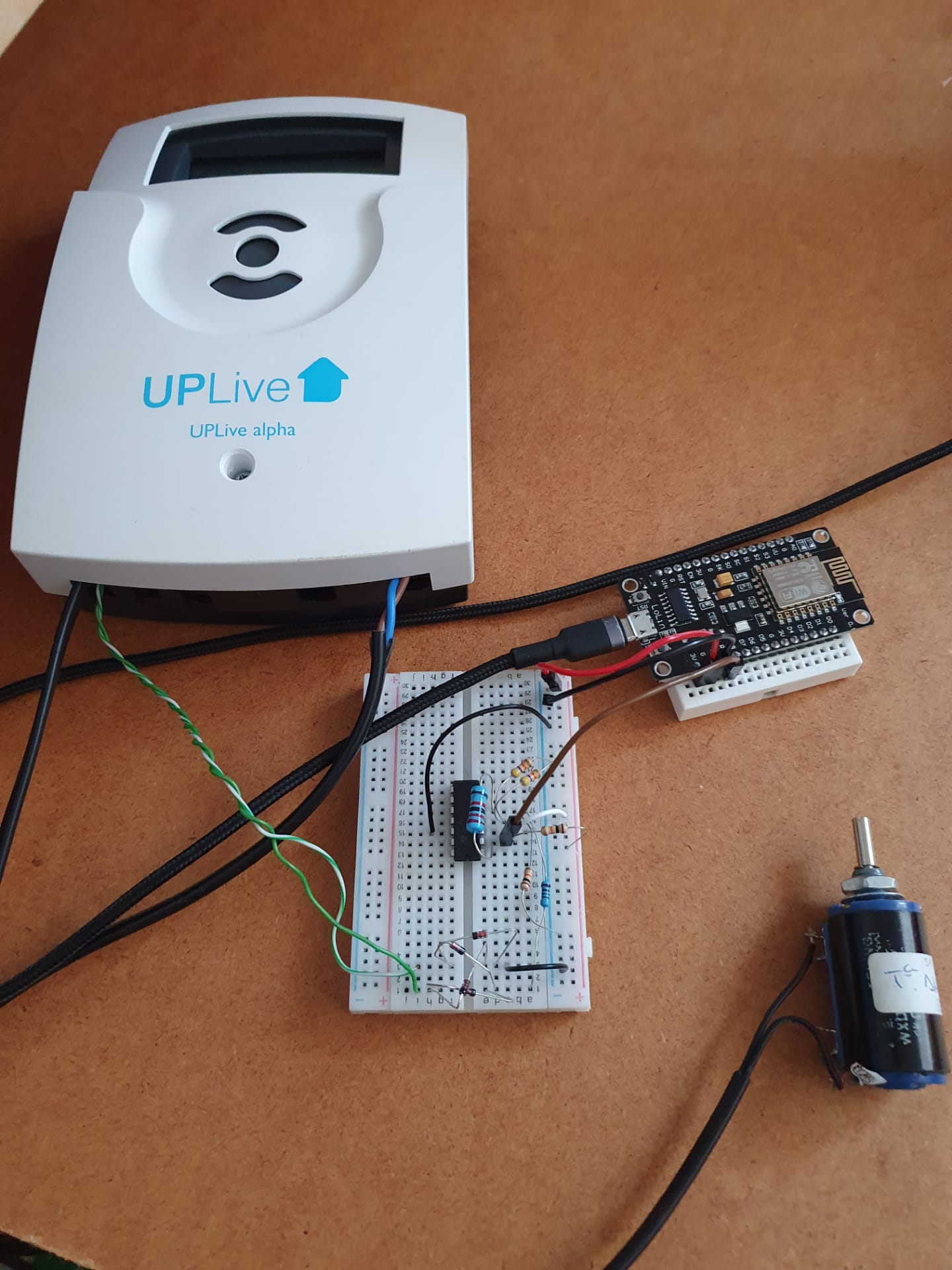

Result for now: What's not really working is extraction of "time", and R1 is always "0%" even if the pump is turned on on mains (230V); so the real pump function only is representated by "pump1" (that's a pump with pwm functionality, R1 could also be configured for "230V-pwm" pumps. R3 in my case is used to control a valve switching heat exchanger between lower and upper level of the buffering tank. My interface is just using an optocoupler, similar to what can be found in https://www.thomas-wedemeyer.de/de/making/solarregler/ (no diodes, as polarity isn't really a problem) . So if there's someone with an idea how to get "time" (and/or "date") working: feel free... |
Beta Was this translation helpful? Give feedback.
-
|
Maybe try ESPHome: https://esphome.io/components/vbus.html |
Beta Was this translation helpful? Give feedback.
-
|
Thanks for pointing me to the ESPHome solution. Unfortunately, my model (Deltasol BX) is not listed as supported there, and as I already get all the relevant info the "tasmota way", atm I'll stick with what I've got. |
Beta Was this translation helpful? Give feedback.
-
|
I do the same, and entirely rely on ESPHome. Using C++ lambdas (bits of code in the config) to customize to my needs. Used Tasmota in the past, ESPHome seems much more stable. You can use 'custom' deltasol model by specifying registers yourself. |
Beta Was this translation helpful? Give feedback.
-
|
Thanks, I already assumed ESPHome to be very flexible and customizabel as well. In case I'm really running into (esp. stability) problems with the solution I'm using now, I'll give it a try. |
Beta Was this translation helpful? Give feedback.
-
|
hi, first of all sorry for reactivating this thread. I'm not sure if the hardware part is all right. I don't seem to see data coming in. I think the hardware part is fine (checked for short circuits, and reviewed all connections). Do you know a way how I could test that part? thanks |
Beta Was this translation helpful? Give feedback.
Maybe this could be done with Smart Meter driver instead?
